SY26406FCC

Synchronous Step Down Regulator

SY26406FCC Features

* Wide Input Voltage Range: 7-100V

* Internal 500mΩ Main Switch and 285mΩ Synchronous Switch

* 0.6A Output Current Capability

* COT Ripple-Based Control to Achieve Fast Transient Responses

* Programmable Switching Frequency Range: 200kHz~600kHz.

* 2ms Internal Soft-start Limi

SY26406FCC General Description

The SY26406 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 0.6A current. The SY26406 operates over a wide input voltage range from 7V to 100V and integrates a main switch and a synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY264.

SY26406FCC Datasheet (1.48 MB)

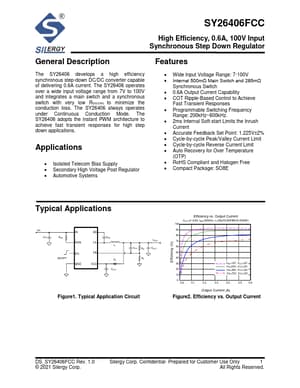

Preview of SY26406FCC PDF

Datasheet Details

Part number:

SY26406FCC

Manufacturer:

Silergy

File Size:

1.48 MB

Description:

Synchronous step down regulator.
