SY26533

Boost Converter

SY26533 Features

* Wide Input Range: 3-30V

* Output Voltage Range: VIN to 33VOUT, MAX

* 1MHz Switching Frequency

* Minimum ON Time: 100ns typical

* Minimum OFF Time: 100ns typical

* Low RDS(ON): 400mΩ

* RoHS Compliant and Halogen Free

* Accurate Reference: 1.24VREF

* Compact Packa

SY26533 General Description

The SY26533 is a high efficiency, current-mode control, asynchronous Boost converter with an integrated 400mΩ RDS(ON) N-channel MOSFET. The fixed 1MHz switching frequency and internal compensation reduce external component count and save PCB space. The built-in internal soft start circuitry minimize.

SY26533 Datasheet (1.15 MB)

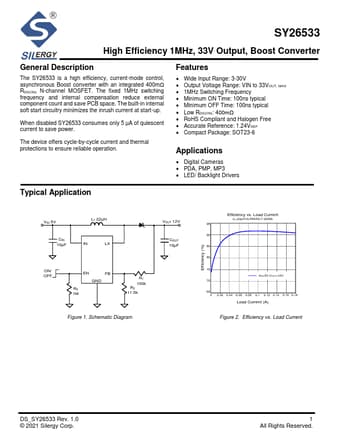

Preview of SY26533 PDF

Datasheet Details

Part number:

SY26533

Manufacturer:

Silergy

File Size:

1.15 MB

Description:

Boost converter.
