SY5072B - Single-Phase Transition-Mode PFC Controller

SY5072B Description

Application Note: SY5072B Single-Phase Transition-Mode PFC Controller General .
Features The SY5072B is a constant voltage Transition-Mode boost controller with Power Factor Correction (PFC) function.

SY5072B Features

* The SY5072B is a constant voltage Transition-Mode boost controller with Power Factor Correction (PFC) function. Constant ON Time control is applied to achieve high PF and low THD without multiplier. It drives the Boost converter in the Quasi-Resonant mode for high efficiency and better EMI performa

SY5072B Applications

* AC Adapter Front End
* LED Drivers and Luminaries Typical Applications Input BD DP DB LB CIN RST COUT External supply RA CA RU CVIN 5 VIN 6 DRV 4 FB 2 GND RGS QB RG 3 COMP 1 ISEN RC0 RD CC1 U1/SY5072B CC0 RB RS AN_SY5072B Rev.0.9 © 2021 Silergy Corp. Figure 1. Sc

📥 Download Datasheet

Preview of SY5072B PDF

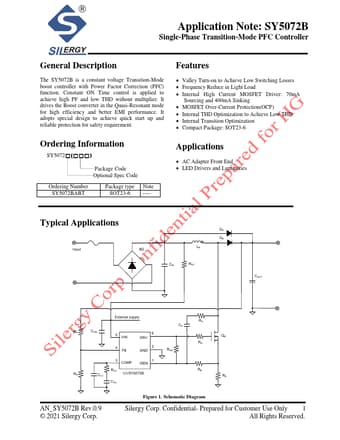

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY5072B
Manufacturer
Silergy
File Size
0.97 MB
Datasheet
SY5072B-Silergy.pdf
Description
Single-Phase Transition-Mode PFC Controller
