SY7066 - 1.8V Minimum Input and 5.5V Maximum Output 6A Peak Current Synchronous Boost

Datasheet Summary

Description

SY7066 is a high efficiency synchronous boost regulator that converts down to 1.8V input and up to 5.5V output voltage.

It adopts NMOS for the main switch and PMOS for the synchronous switch.

It can disconnect the output from input during the shutdown mode.

(

Features

  • 1.8V Minimum input voltage.
  • Adjustable output voltage from 2.5V to 5. 5V.
  • 6A peak current limit.
  • Input under voltage lockout.
  • Load disconnect during shutdown.
  • Output over voltage protection.
  • Input battery voltage monitor.
  • Low RDS(ON) (main switch/synchronous switch) at 5.0V output: 20/40mohm.
  • Compact package: QFN2x2-10.

📥 Download Datasheet

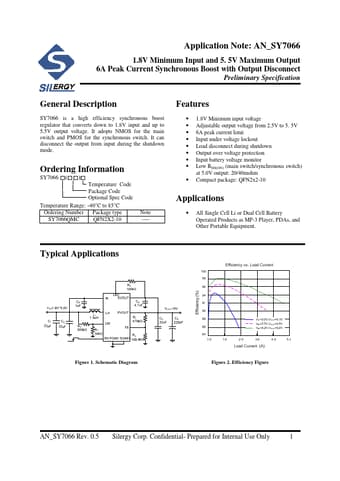

Datasheet preview – SY7066
