SY7065 Datasheet PDF - Silergy 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost Specs

SY7065 - 1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost

Datasheet Summary

Description

The SY7065/SY7065A is a high efficiency synchronous Boost regulator that converts down to 1.8V input and up to 5.5V output voltage.

It adopts NMOS for the main switch and PMOS for the synchronous switch.

It can disconnect the output from input during the shutdown mode.

Features

1.8V Minimum Input Voltage.
Adjustable Output Voltage from 2.5V to 5.5V.
5A Peak Current Limit.
Input Under Voltage Lockout.
Load Disconnect during Shutdown.
Output Over Voltage Protection.
Input Battery Voltage Monitor.
Automatic Output Discharge at Shutdown:  SY7065: Auto Output Discharge Function  SY7065A: No Output Discharge Function.
Low RDS(ON) (Main Switch/Synchronous Switch) at 5.0V Output: 20/40mΩ.
Compact Package: QFN2×2-10 Applicati.

Datasheet Details

Part number	SY7065
Manufacturer	Silergy
File Size	811.29 KB
Description	1.8V Minimum Input and 5.5V Maximum Output 5A Peak Current Synchronous Boost
Datasheet	SY7065 Datasheet
Additional preview pages of the SY7065 datasheet.

📁 Similar Datasheet

SY7060 - Flexibles Montagesystem (SMC)

SY7100 - Bluetooth headset charging case wireless charging solution (TPS)

SY7120 - 5 Port Solenoid Valves (SMC)

SY7140 - 5 Port Solenoid Valves (SMC)

SY7220 - 2 position single (SMC)

SY7320 - 2 position single (SMC)

SY733021U - 2.5/3.3V 1-to-1 Differential to LVCMOS/LVTTL Translator (Micrel Semiconductor)

SY7420 - 2 position single (SMC)

SY74PT - Photo Transistors (Shian Yih Electronic)

SY7520 - 2 position single (SMC)

Full PDF Text Transcription

Click to expand full text

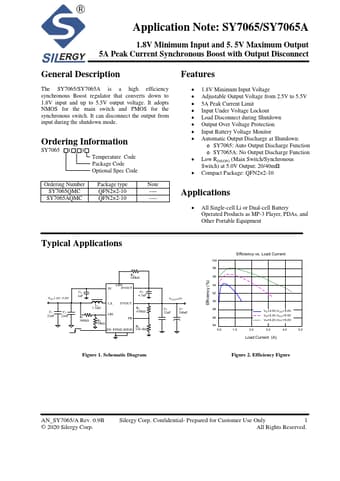

Application Note: SY7065/SY7065A 1.8V Minimum Input and 5. 5V Maximum Output 5A Peak Current Synchronous Boost with Output Disconnect General Description The SY7065/SY7065A is a high efficiency synchronous Boost regulator that converts down to 1.8V input and up to 5.5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. It can disconnect the output from input during the shutdown mode. Ordering Information SY7065 □(□□)□ Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY7065QMC QFN2×2-10 ---- SY7065AQMC QFN2×2-10 ---- Features  1.8V Minimum Input Voltage  Adjustable Output Voltage from 2.5V to 5.

Published: Jul 22, 2015 |
