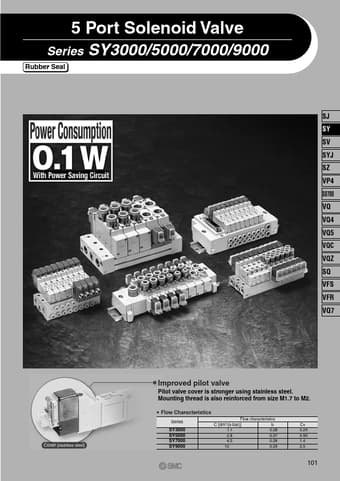

5 Port Solenoid Valve Series SY3000/5000/7000/9000
Rubber Seal
SJ SY SV SYJ SZ VP4 S0700 VQ VQ4 VQ5 VQC VQZ SQ VFS VFR VQ7
Improved pilot valve
Pilot valve cover is stronger using stainless steel. Mounting thread is also reinforced from size M1.7 to M2.
ț Flow Characteristics
Series C [dm3/(s·bar)]
1.1 2.8 4.5 10
Cover (stainless steel)
SY3000 SY5000 SY7000 SY9000
Flow characteristics b 0.28 0.37 0.28 0.29
Cv 0.29 0.90 1.4 2.5
101
Cylinder Speed Chart
Body Ported
Average speed (mm/s)
800 700 600 500 400 300 200 100 0 800 700 600 500 400 300 200 100 0 800 700 600 500 400 300 200 100 0 800 700 600 500 400 300 200 100 0
Use as a guide for selection. Please confirm the actual conditions with SMC Sizing Program.
Series
Series CJ2 Pressure 0.
SY7320 Datasheet
