SY7304

1MHz Step Up Regulator

SY7304 Features

* Wide input range: 3-33V

* Maximum output voltage: 33V

* 1MHz switching frequency

* Integrated 120 mΩ RDS(ON) switch with 4A peak current capability

* Internal soft-start

* 0.6V±2% reference voltage

* Cycle by cycle peak current limit

SY7304 General Description

The SY7304 is a high efficiency, current-mode control Boost regulator. The device integrates a 120mΩ low RDS(ON) N-channel MOSFET for high efficiency. The fixed 1MHz switching frequency and internal compensation reduce external components size and count. The build-in internal soft start circuitry mi.

SY7304 Datasheet (4.64 MB)

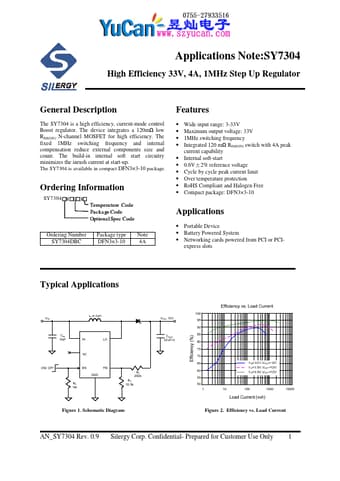

Preview of SY7304 PDF

Datasheet Details

Part number:

SY7304

Manufacturer:

Silergy

File Size:

4.64 MB

Description:

1mhz step up regulator.
