SY8089I

2A Synchronous Step Down Regulator

SY8089I Features

* 2.5V to 5.5V Input Voltage Range

* 50μA Low Quiescent Current

* Low RDS(ON) for Internal Switches (Top/Bottom) 130mΩ /85mΩ

* High Switching Frequency 1.5MHz Minimizes the External Components

* Internal Soft-start Limits the Inrush Current

* 100% Dropout Operation

* Reli

SY8089I General Description

The SY8089I is a high efficiency 1.5MHz synchronous step down DC/DC regulator, which is capable of delivering up to 2A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction l.

SY8089I Datasheet (937.88 KB)

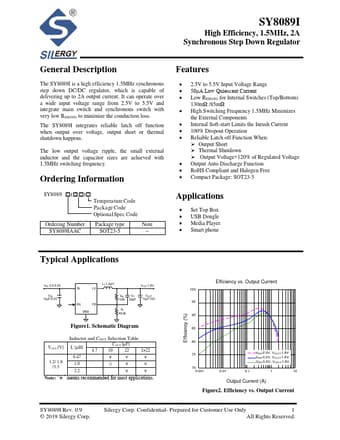

Preview of SY8089I PDF

Datasheet Details

Part number:

SY8089I

Manufacturer:

Silergy

File Size:

937.88 KB

Description:

2a synchronous step down regulator.
