SY8104I

Synchronous Step Down Regulator

SY8104I Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 55mΩ/36mΩ

* 4.2-18V Input Voltage Range

* 4A Output Current Capability

* 500kHz Switching Frequency Minimize the External Components

* Stable with 22µF COUT and 0.68µH Inductor

* Instant PWM Architecture to Achieve Fast Transi

SY8104I General Description

The SY8104I is a high efficiency 500kHz synchronous step-down DC/DC regulator, which is capable of delivering up to 4A load current. It can operate over a wide input voltage range from 4.2V to 18V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss..

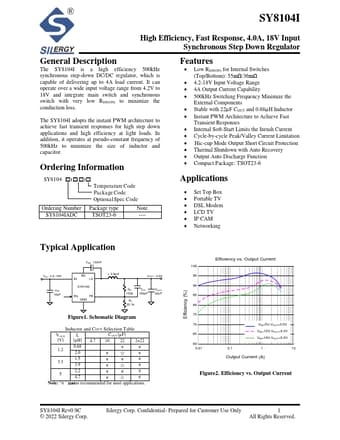

SY8104I Datasheet (0.98 MB)

Preview of SY8104I PDF

Datasheet Details

Part number:

SY8104I

Manufacturer:

Silergy

File Size:

0.98 MB

Description:

Synchronous step down regulator.
