SY8105

Synchronous Step Down Regulator

SY8105 Features

* low RDS(ON) for internal switches (top/bottom): 40mΩ/26mΩ

* 4.5-18V input voltage range

* 5.0A output current capability

* 500 kHz switching frequency

* Instant PWM architecture to achieve fast transient responses.

* Internal softstart limits the inr

SY8105 General Description

The SY8105 is a high efficiency 500 kHz synchronous step-down DC-DC converter capable of delivering 5.0A current. The SY8105 operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output.

SY8105 Datasheet (1.07 MB)

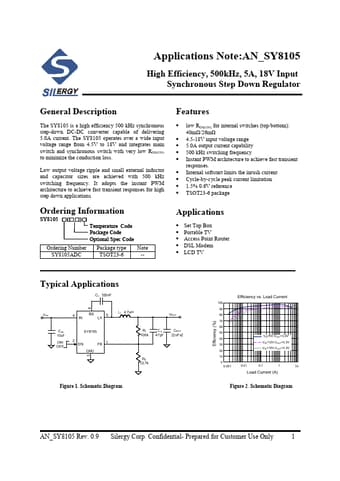

Preview of SY8105 PDF

Datasheet Details

Part number:

SY8105

Manufacturer:

Silergy

File Size:

1.07 MB

Description:

Synchronous step down regulator.
