SY8105I

Synchronous Step Down Regulator

SY8105I Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 41mΩ/27mΩ

* 4.5-18V Input Voltage Range

* 5A Output Current Capability

* 500kHz Switching Frequency Minimize the External Components

* Stable with 22µF COUT and 0.68µH Inductor

* Instant PWM Architectur

SY8105I General Description

The SY8105I is a high efficiency 500kHz synchronous step-down DC/DC regulator, which is capable of delivering up to 5A load current. It can operate over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

SY8105I Datasheet (0.99 MB)

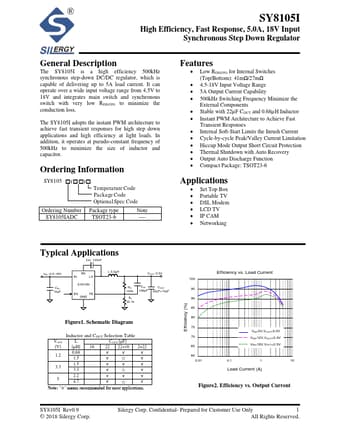

Preview of SY8105I PDF

Datasheet Details

Part number:

SY8105I

Manufacturer:

Silergy

File Size:

0.99 MB

Description:

Synchronous step down regulator.
