SY8205

Synchronous Step Down Regulator

SY8205 Features

* Low RDS(ON) for internal switches (top/bottom): 70/40 mΩ

* 4.5-30V input voltage range

* Instant PWM architecture to achieve fast transient responses

* External softstart limits the inrush current

* Pseudo-constant frequency: 500kHz at heavy loads

SY8205 General Description

SY8205 develops a high efficiency synchronous stepdown DC-DC converter capable of delivering 5A output current. SY8205 operates over a wide input voltage range from 4.5V to 30V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8205 adopts th.

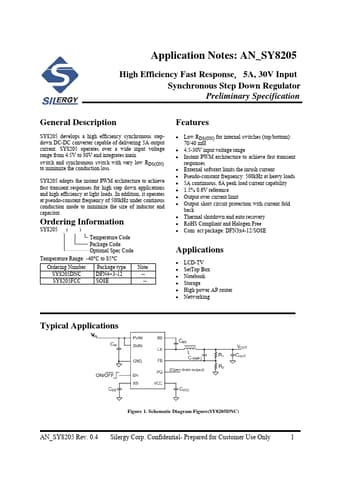

SY8205 Datasheet (801.64 KB)

Preview of SY8205 PDF

Datasheet Details

Part number:

SY8205

Manufacturer:

Silergy

File Size:

801.64 KB

Description:

Synchronous step down regulator.
Application Notes: AN_SY8205 High Efficiency Fast Response,5A, 30V Input Synchronous Step Down Regulator Preliminary Specification General Descriptio.
