SY8511 - 0.6A Asynchronous Step Down Regulator

Silergy

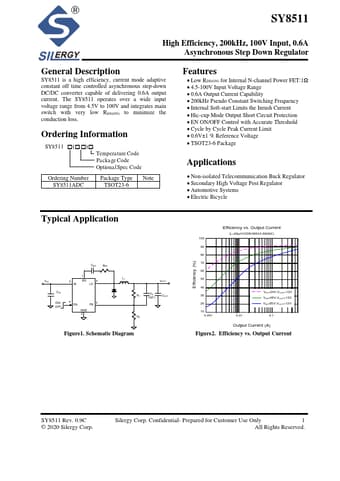

SY8511 Datasheet Preview — Preview of SY8511 PDF

Datasheet Details

Part number	SY8511
Manufacturer	Silergy
File Size	215.41 KB
Description	0.6A Asynchronous Step Down Regulator
Datasheet	SY8511-Silergy.pdf

SY8511 Product details

Description

SY8511 is a high efficiency, current mode adaptive constant off time controlled asynchronous step-down DC/DC converter capable of delivering 0.6A output current. ( ) Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number SY8511ADC Package Type Note TSOT23-6

Features

Low RDS(ON) for Internal N-channel Power FET:1Ω.
4.5-100V Input Voltage Range.
0.6A Output Current Capability.
200kHz Pseudo Constant Switching Frequency.
Internal Soft-start Limits the Inrush Current.
Hic-cup Mode Output Short Circuit Protection.
EN ON/OFF Control with Accurate Threshold.
Cycle by Cycle Peak Current Limit.
0.6V±1 % Reference Voltage.
TSOT23-6 Package.
