SYR827 Synchronous Step Down Regulator

Silergy

Description

SYR827 High Efficiency 5.5V, 6A, 2.4MHz I2C Programmable, Synchronous Step Down Regulator Preliminary Specification General .
SYR827 is a high efficiency 2.

📥 Download Datasheet

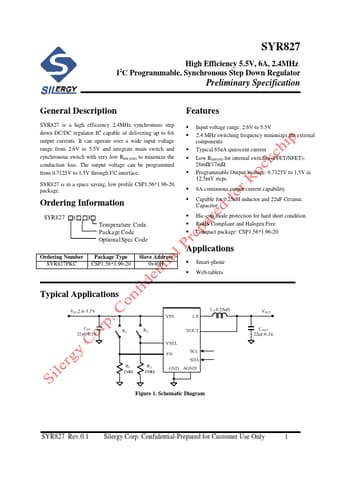

SYR827 Datasheet Preview — Preview of SYR827 PDF

Datasheet Specifications

Part number: SYR827
Manufacturer: Silergy
File Size: 1.11 MB
Datasheet: SYR827-Silergy.pdf
Description: Synchronous Step Down Regulator

Features

* Input voltage range: 2.6V to 5.5V
* 2.4 MHz switching frequency minimizes the external components
* Typical 65uA quiescent current
* Low RDS(ON) for internal switches (PFET/NFET): 28mΩ/17mΩ
* Programmable Output Voltage: 0.7125V to 1.5V in 12.5mV steps

Applications

* Smart-phone
* Web-tablets Typical Applications Figure 1. Schematic Diagram SYR827 Rev.0.1 Silergy Corp. Confidential-Prepared for Customer Use Only 1 Pinout (top view) SYR827 Part Number SYR827PKC Package type CSP1.56
* 1.96-20 Top Mark① Ab xyz Note① ： x=year code, y=we
