SYR838, SYR837 Datasheet - Silergy

SYR838 Synchronous Step Down Regulator

SYR837/SYR838 is a high efficiency 2.4MHz synchronous step down DC/DC regulator IC capable of delivering up to 6A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss..

SYR838 Features

* Input voltage range: 2.6V to 5.5V

* 2.4 MHz switching frequency minimizes the external components

* Typical 65uA quiescent current

* Low RDS(ON) for internal switches (PFET/NFET): 28mΩ/17m

SYR837-Silergy.pdf

This datasheet PDF includes multiple part numbers: SYR838, SYR837. Please refer to the document for exact specifications by model.

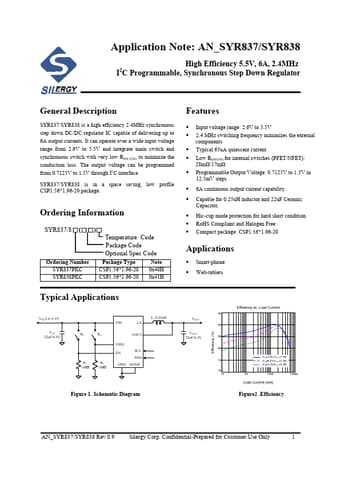

SYR838 Datasheet Preview Page 2 SYR838 Datasheet Preview Page 3

Datasheet Details

Part number:

SYR838, SYR837

Manufacturer:

Silergy

File Size:

1.79 MB

Description:

Synchronous step down regulator.

Note:

This datasheet PDF includes multiple part numbers: SYR838, SYR837.
Please refer to the document for exact specifications by model.
