SYS11U03 - Ultra-low Capacitance ESD/Surge Protection

Silergy

SYS11U03 Description

SYS11U03 - SYS11U24 Ultra-low Capacitance ESD/Surge Protection .
SYS11UxxAMC is an ultra-low capacitance ESD and Surge Protector designed to provide electrostatic discharge (ESD) protection for high-speed data inter.

SYS11U03 Applications

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 550W (8/20μs)
* Low leakage current: 0.01μA @ VRWM (Typ. )
* Working Voltages: 3.3V, 5V, 8V, 12V, 15V, 24V
* Ultra Low Capacitance: 0.6pF (Typ. )
* Low clamping v

📥 Download Datasheet

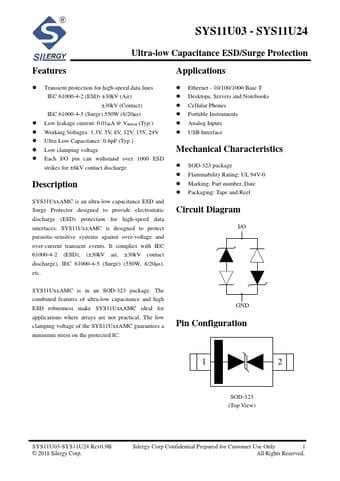

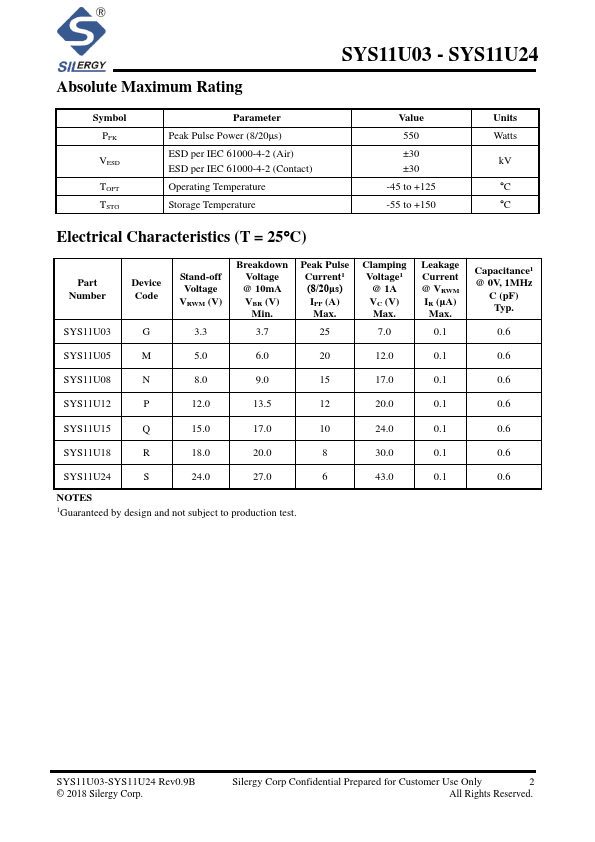

SYS11U03 Datasheet Preview — Preview of SYS11U03 PDF

Datasheet Details

Part number: SYS11U03
Manufacturer: Silergy
File Size: 821.80 KB
Datasheet: SYS11U03-Silergy.pdf
Description: Ultra-low Capacitance ESD/Surge Protection
