SYS11U18 Ultra-low Capacitance ESD/Surge Protection

SYS11UxxAMC is an ultra-low capacitance ESD and Surge Protector designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. SYS11UxxAMC is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 610.

SYS11U18 Features

* Applications

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 550W (8/20μs)

* Low leakage current: 0.01μA @ VRWM (Typ.)

* Working Voltages: 3.3V, 5V, 8V, 12V, 15V, 24V

* Ultra Low Capacitance: 0.6pF (Typ.)

SYS11U03-Silergy.pdf

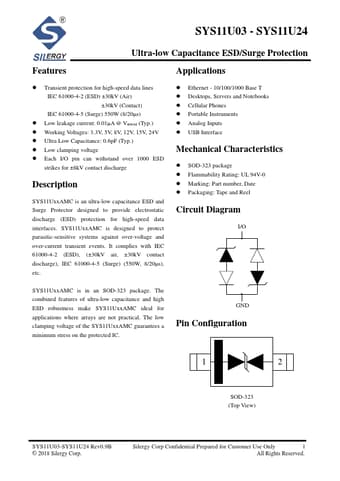

SYS11U18 Datasheet Preview — This datasheet PDF includes multiple part numbers: SYS11U18, SYS11U03. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYS11U18, SYS11U03

Manufacturer:

Silergy

File Size:

821.80 KB

Description:

Ultra-low capacitance esd/surge protection.

Note:

This datasheet PDF includes multiple part numbers: SYS11U18, SYS11U03.
Please refer to the document for exact specifications by model.
