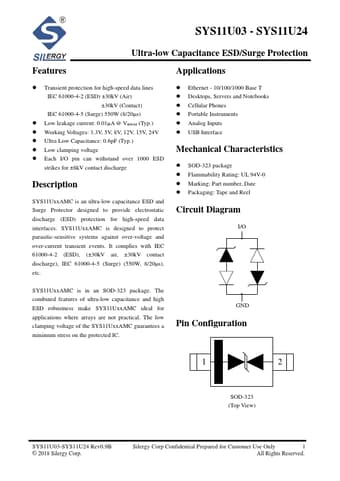

SYS11U08 - Ultra-low Capacitance ESD/Surge Protection
SYS11UxxAMC is an ultra-low capacitance ESD and Surge Protector designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces.
SYS11UxxAMC is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events.
It complies with IEC 610
SYS11U08 Features
* Applications
* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 550W (8/20μs)
* Low leakage current: 0.01μA @ VRWM (Typ.)
* Working Voltages: 3.3V, 5V, 8V, 12V, 15V, 24V
* Ultra Low Capacitance: 0.6pF (Typ.)
