SYT04L05AWC

Low Capacitance TVS Protection

Silergy

SYT04L05AWC Features

* Applications

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 7.5A (8/20μs)

* Small package (2.9mm  2.4mm  1.0mm)

* Protects two data lines

* Low capacitance: 1.2pF Typical (I/O-GND)

* Low leakage current:

SYT04L05AWC General Description

SYT04L05AWC is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 1.2pF only, SYT04L05AWC is designed to protect parasitic-sensitive systems against over-voltage and over.

SYT04L05AWC Datasheet (630.17 KB)

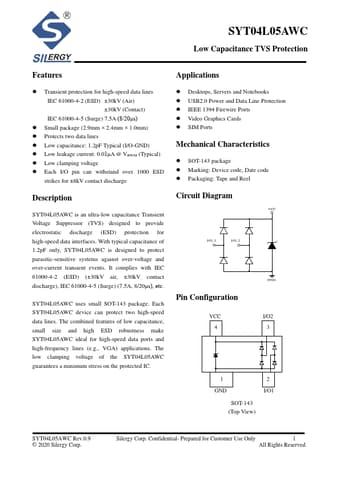

SYT04L05AWC Datasheet Preview — Preview of SYT04L05AWC PDF

Datasheet Details

Part number:

SYT04L05AWC

Manufacturer:

Silergy

File Size:

630.17 KB

Description:

Low capacitance tvs protection.
