SYT11L05 Datasheet - Silergy

Low Capacitance TVS Protection

SYT11L05 Features

* Applications

* Transient Protection for High-speed Data Lines IEC 61000-4-2 (ESD) ±30kV(Air) ±30kV(Contact) IEC 61000-4-5 (Surge) 10A (8/20 μs)

* For 5.0V and Below the Operating Voltage

* Package Optimized for High-speed lines

* Ultra-small Package: DFN0.6×0.3-2 DFN1.0×0.6-2

SYT11L05 General Description

The SYT11L05 is a low-capacitance transient voltage suppressor (TVS) designed to provide the electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 2.0pF, the SYT11L05 is designed to protect parasitic-sensitive systems against over-voltage and over-curre.

SYT11L05 Datasheet (568.19 KB)

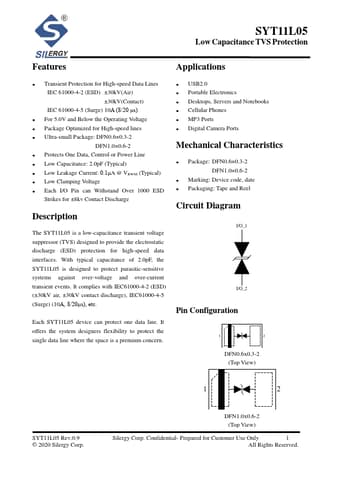

Preview of SYT11L05 PDF

Datasheet Details

Part number:

SYT11L05

Manufacturer:

Silergy

File Size:

568.19 KB

Description:

Low capacitance tvs protection.
