SYT03S05SIC

Ultra-Low Capacitance TVS Protection

SYT03S05SIC Features

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±20kV (Air) ±20kV (Contact) IEC 61000-4-5 (Surge) 4A (8/20μs)

* For 5V and below operating voltage

* Small package: DFN1.6

* 1.0-6L

* Protects two data lines

* Low Cap: 0.3pF Typ. (I/O-I/O) 0.6pF Typ. (I/O-GND

SYT03S05SIC General Description

SYT03S05SIC is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.3pF(I/O-I/O) only, SYT03S05SIC is designed to protect parasitic-sensitive systems against over-voltage.

SYT03S05SIC Datasheet (717.96 KB)

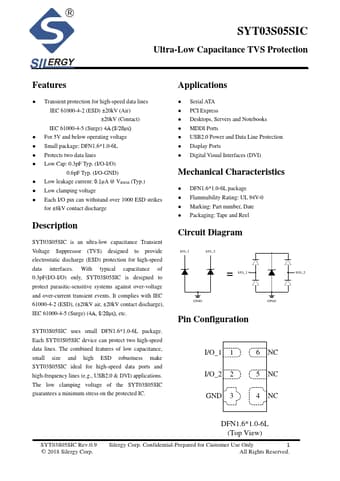

Preview of SYT03S05SIC PDF

Datasheet Details

Part number:

SYT03S05SIC

Manufacturer:

Silergy

File Size:

717.96 KB

Description:

Ultra-low capacitance tvs protection.
