SI3038, SI3014, (SI3014/24.38) Global MC97 Silicon DAA

Si3038 G L O B A L M C ’ 9 7 S I L I C O N DAA .
The Si3038 is an integrated direct access arrangement (DAA) chipset that provides a digital, programmable line interface to meet global telephone line.

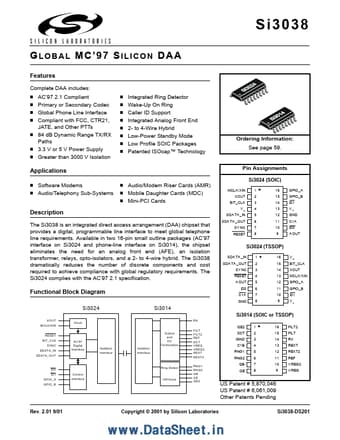

datasheet Preview Page 1 from Datasheet4u.com

SI3014_SiliconLaboratories.pdf

SI3038 Datasheet Preview — This datasheet PDF includes multiple part numbers: SI3038, SI3014. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SI3038, SI3014

Manufacturer:

Silicon Laboratories

File Size:

1.64 MB

Description:

(SI3014/24.38) Global MC97 Silicon DAA

Note:

This datasheet PDF includes multiple part numbers: SI3038, SI3014.
Please refer to the document for exact specifications by model.

Features

* Complete DAA includes:
* AC’97 2.1 Compliant Primary or Secondary Codec Global Phone Line Interface Compliant with FCC, CTR21, JATE, and Other PTTs 84 dB Dynamic Range TX/RX Paths 3.3 V or 5 V Power Supply Greater than 3000 V Isola

Applications

* Software Modems
* Audio/Telephony Sub-Systems
* Pin Assignments Audio/Modem Riser Cards (AMR)
* Mobile Daughter Cards (MDC)
* Mini-PCI Cards
* Si3024 (SOIC) MCLK/XIN XOUT BIT_CLK VD SDA TA _IN SDA TA _OUT SY NC RESET 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 GP
