TS1001

RAIL-TO-RAIL OP AMP

TS1001 Features

* Single 0.65V to 2.5V Operation Supply current: 0.6μA (typ) Offset voltage: 0.5mV (typ) Low TCVOS: 20µV/°C (typ) AVOL Driving 100kΩ Load: 90dB (min) Unity Gain Stable Rail-to-rail Input and Output No Output Phase Reversal 5-pin SC70 Package APPLICATIONS Battery/Solar-Powered Instrumentation Portable

TS1001 General Description

The TS1001 is the industry’s first sub-1µA supply current, precision CMOS operational amplifier rated to operate at a nominal supply voltage of 0.8V. Optimized for ultra-long-life battery-powered applications, the TS1001 is an operational amplifier in the “NanoWatt Analog™” high-performance analog i.

TS1001 Datasheet (1.41 MB)

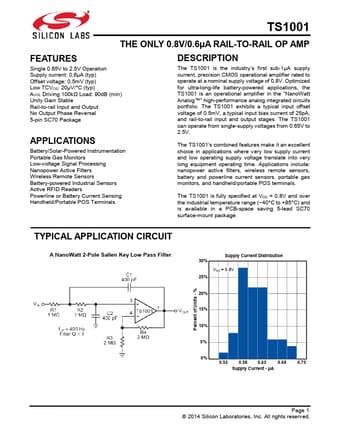

Preview of TS1001 PDF

Datasheet Details

Part number:

TS1001

Manufacturer:

Silicon Laboratories

File Size:

1.41 MB

Description:

Rail-to-rail op amp.
