TS103 Dual Operational Amplifiers And Voltage Reference

TS103 Description

SOP-8 Pin assignment: 1.Output A 2.Input A (-) 3.Input A (+) / Vka 4.Gnd 8.Vcc 7.Output B 6.Input B (-) 5.Input B (+) TS103 Dual Operationa.
The TS103 is a monolithic IC specifically designed to control the output current and voltage levels of switch mode battery chargers and power supplies.

TS103 Features

* increased precision with a corresponding reduction in system complexity and cost. Features
* Input Offset Voltage: 0.5mV
* Supply Current: 250uA per OP AMP @ 5V
* Unity Gain Bandwidth: 1MHz
* Output Voltage Swing: 0~(Vcc
* 1.5) V
* Power Supply Voltage: 3~18V
* Fixed

TS103 Applications

* Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper use or sale. 6/6 Version: C12

📥 Download Datasheet

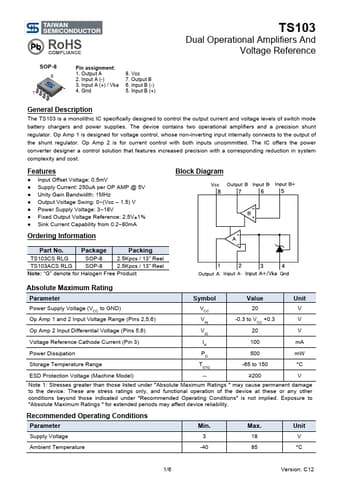

Preview of TS103 PDF
