TS103ACS Datasheet - Taiwan Semiconductor

TS103ACS - Dual Operational Amplifiers and Voltage Reference

The TS103 is a monolithic IC specifically designed to control the output current and voltage levels of switch mode battery chargers and power supplies.

The device contains two operational amplifiers and a precision shunt regulator.

OP AMP 1 is designed for voltage control, whose non-inverting input

TS103ACS Features

* increased precision with a corresponding reduction in system complexity and cost. FEATURES

* Input Offset Voltage: 0.5mV

* Supply Current: 250μA per OP AMP @ 5V

* Unity Gain Bandwidth: 1MHz

* Output Voltage Swing: 0~(VCC

* 1.5) V

* Power Supply Voltage: 3~18V

* Fixed

TS103ACS-TaiwanSemiconductor.pdf

Preview of TS103ACS PDF

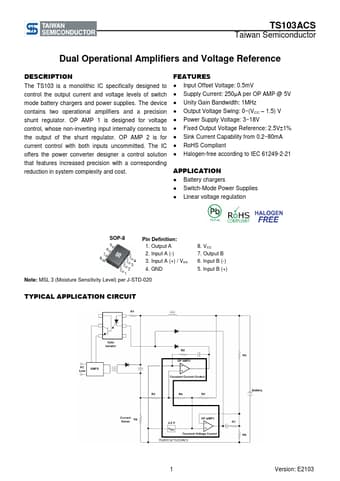

TS103ACS Datasheet Preview Page 2 TS103ACS Datasheet Preview Page 3

Datasheet Details

Part number:

TS103ACS

Manufacturer:

Taiwan Semiconductor

File Size:

284.12 KB

Description:

Dual operational amplifiers and voltage reference.
