M114 Datasheet - Siliconix

M114 P-channel MOSFET

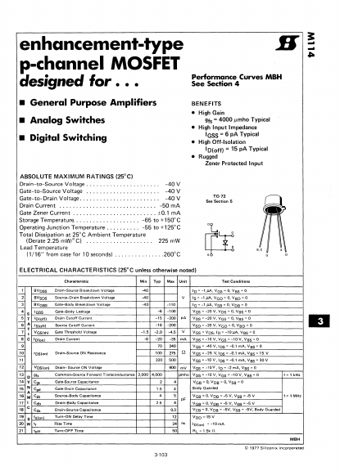

enhancement-type H p-channel MOSFET designed for Performance Curves MBH See Section 4 General Purpose Amplifiers Analog Switches Digital Switching BENEFITS High Gain 9fs = 4000 I'mho Typical High Input Impedance IGSS = 6 pA Typical High Off-Isolation ID(off) = 15 pA Typical Rugged Zener Protected Input ABSOLUTE MAXIMUM RATINGS (25°C) Drain-to-Source Voltage -40V Gate-to-Source Voltage -40.

M114 Datasheet (64.08 KB)

M114 Datasheet Preview — Preview of M114 PDF

Datasheet Details

Part number:

M114

Manufacturer:

Siliconix

File Size:

64.08 KB

Description:

P-channel mosfet.
