Description
Schottky Barrier Rectifier designed for high frequency switch model power supplies such as adaptors and DC/DC convertors; this product special design for high forward and reverse surge capability
Absolute Rating:
Symbol
Characterizes
VRRM VR(RMS)
IF(AV)
Peak Repetitive Reverse Voltage RMS Reverse Voltage Average Forward Current
IFSM Non Repetitive Surge Forward Current(tp=8.3ms sinusoidal)
IRRM Peak Repetitive Reverse Surge Current(Tp=2us) TJ Maximum operation Junction Temperature Range
Features
- High Junction Temperature.
- High ESD Protection.
- High Forward & Reverse Surge capability
TO126 SSTS20100R
TO126F SSTS20100RF
Schematic Diagram.

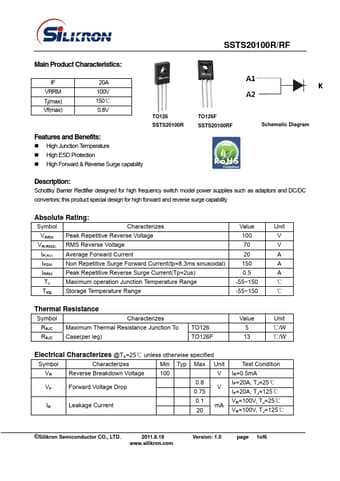

SSTS20100R Datasheet
