SST110 - N-Channel JFET Switch

This page provides the datasheet information for the SST110, a member of the SST108 N-Channel JFET Switch family.

Datasheet Summary

Features

  • Low Cost Automated Insertion Package Low Insertion Loss No Offset or Error Voltages Generated by Closed Switch Purely Resistive High Isolation Resistance from Driver Fast Switching Low Noise.

📥 Download Datasheet

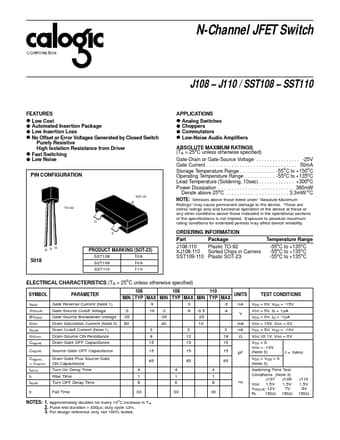

Datasheet preview – SST110

Datasheet Details

Part number SST110
Manufacturer Calogic
File Size 21.49 KB
Description N-Channel JFET Switch
Datasheet download datasheet SST110 Datasheet
Additional preview pages of the SST110 datasheet.

📁 Similar Datasheet

  • SST110 - Switching (Micross)
  • SST110 - N-Channel JFETs (Vishay)
  • SST111 - N-Channel JFETs (Vishay)
  • SST111 - Switching (Micross)
  • SST111 - SINGLE N-CHANNEL JFET SWITCH (LINEAR SYSTEMS)
  • SST112 - N-Channel JFETs (Vishay)
  • SST112 - Switching (Micross)
  • SST113 - N-Channel JFETs (Vishay)
  • SST113 - Switching (Micross)
  • SST11CP15 - 4.9-5.8 GHz High-Linearity Power Amplifier (Silicon Storage Technology)
Other Datasheets by Calogic
  • SST111 - N-Channel JFET Switch
  • SST112 - N-Channel JFET Switch
  • SST113 - N-Channel JFET Switch
  • SST108 - N-Channel JFET Switch
  • SST109 - N-Channel JFET Switch
  • SST174 - P-Channel JFET Switch
  • SST175 - P-Channel JFET Switch
  • SST176 - P-Channel JFET Switch

Full PDF Text Transcription

Click to expand full text
N-Channel JFET Switch CORPORATION J108 – J110 / SST108 – SST110 FEATURES Low Cost Automated Insertion Package Low Insertion Loss No Offset or Error Voltages Generated by Closed Switch Purely Resistive High Isolation Resistance from Driver Fast Switching Low Noise • • • • • • APPLICATIONS Analog Switches Choppers Commutators Low-Noise Audio Amplifiers • • • • PIN CONFIGURATION SOT-23 G TO-92 ABSOLUTE MAXIMUM RATINGS (TA = 25oC unless otherwise specified) Gate-Drain or Gate-Source Voltage . . . . . . . . . . . . . . . . -25V Gate Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA Storage Temperature Range . . . . . . . . . . . . . -55oC to +150oC Operating Temperature Range . . . . . . . . . . . -55oC to +135oC Lead Temperature (Soldering, 10sec) . . . . .
