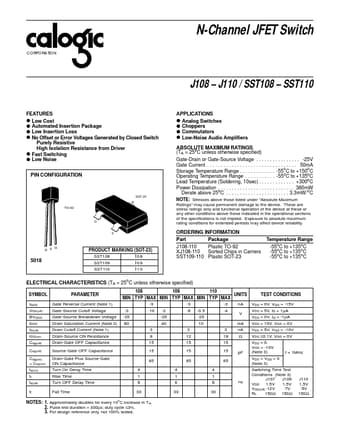

SST109 Datasheet, Switch, Calogic

SST109 Features

• Switch Low Cost Automated Insertion Package Low Insertion Loss No Offset or Error Voltages Generated by Closed Switch Purely Resistive High Isolation Resistance from Driver Fast Switching Low

PDF File Details

Part number:

SST109

Manufacturer:

Calogic

File Size:

21.49kb

Download:

📄 Datasheet

Description:

N-channel jfet switch.

SST109 Application

• Applications Analog Switches Choppers Commutators Low-Noise Audio Amplifiers
• PIN CONFIGURATION SOT-23 G T
