SST112

N-Channel JFETs

Vishay

SST112 Features

* D Low On-Resistance: 111 < 30 W D Fast Switching

* tON: 4 ns D Low Leakage: 5 pA D Low Capacitance: 3 pF D Low Insertion Loss BENEFITS D Low Error Voltage D High-Speed Analog Circuit Performance D Negligible “Off-Error,” Excellent Accuracy D Good Frequency Response, Low Glitches D Eliminates

SST112 General Description

The J/SST111 series consists of all-purpose analog switches designed to support a wide range of applications. The J/SST113 are useful in a high-gain amplifier mode. The J series, TO-226AA (TO-92) plastic package, provides low cost, while the SST series, TO236 (SOT-23) package, provides.

SST112 Datasheet (52.97 KB)

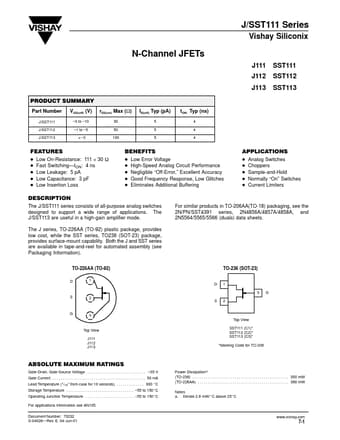

SST112 Datasheet Preview — Preview of SST112 PDF

Datasheet Details

Part number:

SST112

Manufacturer:

Vishay ↗

File Size:

52.97 KB

Description:

N-channel jfets.
J/SST111 Series Vishay Siliconix N-Channel JFETs PRODUCT SUMMARY Part Number VGS(off) (V) rDS(on) Max (W) J/SST111 J/SST112 J/SST113

*3 t.
