SST113 - N-Channel JFETs

This page provides the datasheet information for the SST113, a member of the SST111 N-Channel JFETs family.

Datasheet Summary

Description

The J/SST111 series consists of all-purpose analog switches designed to support a wide range of applications.

The J/SST113 are useful in a high-gain amplifier mode.

Features

  • D Low On-Resistance: 111 < 30 W D Fast Switching.
  • tON: 4 ns D Low Leakage: 5 pA D Low Capacitance: 3 pF D Low Insertion Loss.

📥 Download Datasheet

Datasheet preview – SST113

Datasheet Details

Part number SST113
Manufacturer Vishay
File Size 52.97 KB
Description N-Channel JFETs
Datasheet download datasheet SST113 Datasheet
Additional preview pages of the SST113 datasheet.

📁 Similar Datasheet

  • SST113 - N-Channel JFET Switch (Calogic)
  • SST113 - Switching (Micross)
  • SST110 - N-Channel JFET Switch (Calogic)
  • SST110 - Switching (Micross)
  • SST111 - N-Channel JFET Switch (Calogic)
  • SST111 - Switching (Micross)
  • SST111 - SINGLE N-CHANNEL JFET SWITCH (LINEAR SYSTEMS)
  • SST112 - N-Channel JFET Switch (Calogic)
  • SST112 - Switching (Micross)
  • SST11CP15 - 4.9-5.8 GHz High-Linearity Power Amplifier (Silicon Storage Technology)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

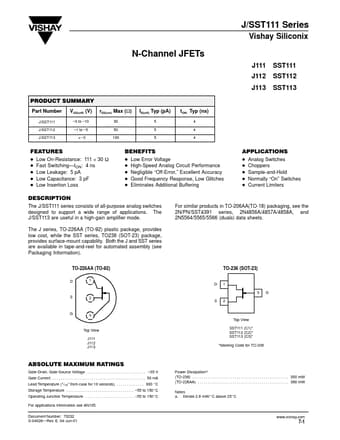

J/SST111 Series Vishay Siliconix N-Channel JFETs PRODUCT SUMMARY Part Number VGS(off) (V) rDS(on) Max (W) J/SST111 J/SST112 J/SST113 –3 to –10 –1 to –5 v–3 30 50 100 ID(off) Typ (pA) 5 5 5 tON Typ (ns) 4 4 4 J111 SST111 J112 SST112 J113 SST113 FEATURES D Low On-Resistance: 111 < 30 W D Fast Switching—tON: 4 ns D Low Leakage: 5 pA D Low Capacitance: 3 pF D Low Insertion Loss BENEFITS D Low Error Voltage D High-Speed Analog Circuit Performance D Negligible “Off-Error,” Excellent Accuracy D Good Frequency Response, Low Glitches D Eliminates Additional Buffering APPLICATIONS D Analog Switches D Choppers D Sample-and-Hold D Normally “On” Switches D Current Limiters DESCRIPTION The J/SST111 series consists of all-purpose analog switches designed to support a wide range of applicatio
