SLM2009

200V Half-Bridge Driver

SLM2009 Features

* Floating channel designed for bootstrap operation

* Fully operational to +200 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 18 V

* Under-voltage lockout

* 3.3 V, 5 V logic compatible

* Cross-conduction prevention logic

SLM2009 General Description

The SLM2009 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down .

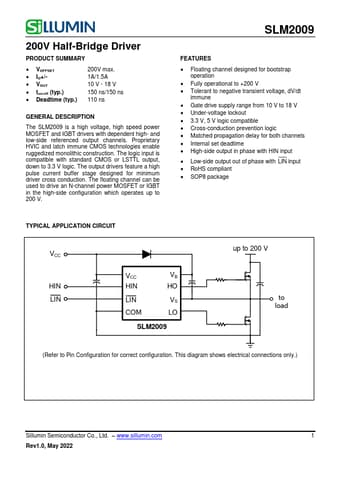

SLM2009 Datasheet (468.21 KB)

Preview of SLM2009 PDF

Datasheet Details

Part number:

SLM2009

Manufacturer:

Sillumin

File Size:

468.21 KB

Description:

200v half-bridge driver.
200V Half-Bridge Driver PRODUCT SUMMARY
* VOFFSET
* IO+/
* VOUT
* ton/off (typ.)
* Deadtime (typ.) 200V max. 1A/1.5A 10 V - 18 V.
