SLM2005E - 200V Half-Bridge Driver

Product Overview

Sillumin

📥 Download Datasheet

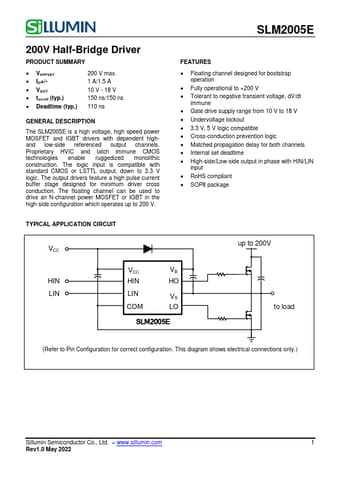

SLM2005E 200V Half-Bridge Driver by Sillumin - Datasheet Preview — Datasheet preview – SLM2005E

Datasheet Details

Part number	SLM2005E
Manufacturer	Sillumin
File Size	465.16 KB
Description	200V Half-Bridge Driver
Datasheet	SLM2005E Datasheet
Additional preview pages of the SLM2005E datasheet.

Product details

Description

The SLM2005E is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels.

Features

Floating channel designed for bootstrap operation.
Fully operational to +200 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 18 V.
Undervoltage lockout.
3.3 V, 5 V logic compatible.
Cross-conduction prevention logic.
Matched propagation delay for both channels.
Internal set deadtime.
High-side/Low-side output in phase with HIN/LIN input.
RoHS compliant.
SOP8 package.
