SLM2014

200V Half-Bridge Driver

SLM2014 Features

* Floating channel designed for bootstrap operation

* Fully operational to +200 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 18 V

* Undervoltage lockout

* 3.3 V, 5 V logic compatible

* Cross-conduction prevention logic

SLM2014 General Description

The SLM2014 is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to.

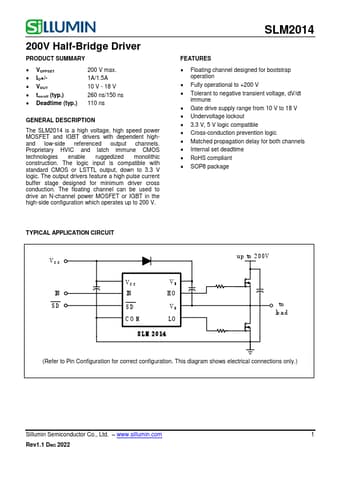

SLM2014 Datasheet (579.59 KB)

Preview of SLM2014 PDF

Datasheet Details

Part number:

SLM2014

Manufacturer:

Sillumin

File Size:

579.59 KB

Description:

200v half-bridge driver.
200V Half-Bridge Driver PRODUCT SUMMARY
* VOFFSET
* IO+/
* VOUT
* ton/off (typ.)
* Deadtime (typ.) 200 V max. 1A/1.5A 10 V - 18 .
