SLM2004S

200V Half-Bridge Driver

SLM2004S Features

* Floating channel designed for bootstrap operation

* Fully operational to +200 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V logic compatible

* Cross-conduction preventio

SLM2004S General Description

The SLM2004S is a high voltage, high speed power MOSFET and IGBT drivers with dependent highand low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down t.

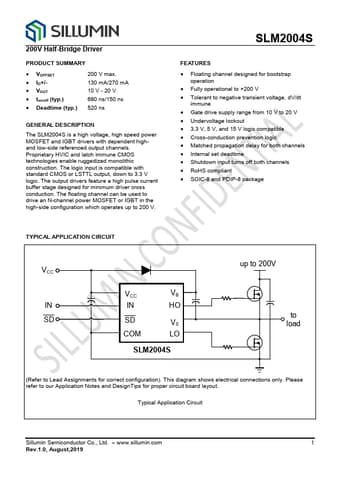

SLM2004S Datasheet (2.92 MB)

Preview of SLM2004S PDF

Datasheet Details

Part number:

SLM2004S

Manufacturer:

Sillumin

File Size:

2.92 MB

Description:

200v half-bridge driver.
200V Half-Bridge Driver PRODUCT SUMMARY
* VOFFSET
* IO+/
* VOUT
* ton/off (typ.)
* Deadtime (typ.) 200 V max. 130 mA/270 mA 10 V.
