U632H16 Datasheet - Simtek

PowerStore 2K x 8 nvSRAM

U632H16 Features

* High-performance CMOS nonvolatile static RAM 2048 x 8 bits 25 ns Access Times 12 ns Output Enable Access Times ICC = 15 mA at 200 ns Cycle Time Automatic STORE to EEPROM on Power Down using external capacitor Hardware or Software initiated STORE (STORE Cycle Time < 10 ms) Automatic STORE T

U632H16 General Description

The U632H16 has two separate modes of operation: SRAM mode and nonvolatile mode. In SRAM mode, the memory operates as an ordinary static RAM. In nonvolatile operation, data is transferred in parallel from SRAM to EEPROM or from EEPROM to SRAM. In this mode SRAM functions are disabled. The U632H16 is.

U632H16 Datasheet (432.07 KB)

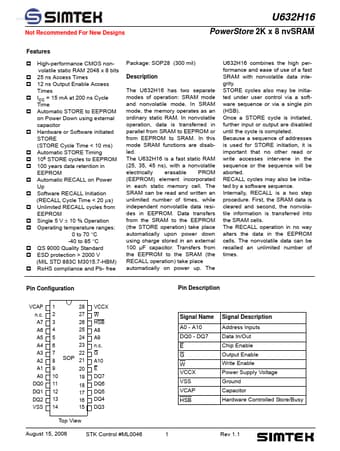

U632H16 Datasheet Preview — Preview of U632H16 PDF

Datasheet Details

Part number:

U632H16

Manufacturer:

Simtek

File Size:

432.07 KB

Description:

Powerstore 2k x 8 nvsram.
