U632H64 Datasheet - Simtek

PowerStore 8K x 8 nvSRAM

U632H64 Features

* ‡ High-performance CMOS nonvolatile static RAM 8192 x 8 bits ‡ 25 ns Access Time ‡ 12 ns Output Enable Access Time ‡ ICC = 15 mA at 200 ns Cycle Time ‡ Automatic STORE to EEPROM on Power Down using external capacitor ‡ Hardware or Software initiated STORE (STORE Cycle Time < 10 ms) ‡ Automatic STORE

U632H64 General Description

The U632H64 has two separate modes of operation: SRAM mode and nonvolatile mode. In SRAM mode, the memory operates as an ordinary static RAM. In nonvolatile operation, data is transferred in parallel from SRAM to EEPROM or from EEPROM to SRAM. In this mode SRAM functions are disabled. The U632H64 is.

U632H64 Datasheet (436.97 KB)

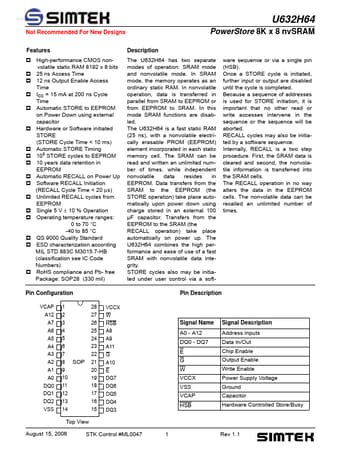

Preview of U632H64 PDF

Datasheet Details

Part number:

U632H64

Manufacturer:

Simtek

File Size:

436.97 KB

Description:

Powerstore 8k x 8 nvsram.
