S1602E - LCD MODULE USER MANUAL

Datasheet Summary

Description

ITEM 1 2 3 4 5 6 7 8 9 ～ 16 SYMBOL LEDA LEDK VSS VDD V0 RS R/W E DB0 ～ DB7 LEVEL 5.0V 0V 0V 5.0V H/L H/L H，H->L H/L FUNCTION Power Supply For LED Backlight Power Ground Power Supply For Logic Contrast Adjust H：Data H：Read L：Command L：Write Enable Signal Data Bus Datasheet pdf - http://www.DataShee

Features

  • Features Characters: 16×2 Lines LCD Mode: STN Controller IC: SPLC780D or Equivalent Driving Method: 1/16 Duty; 1/5Bias Viewing Angie: 6 O’clock direction 6800 serial 8-Bit/4-Bit MPU Interface Backlight: LED Operating Temperature Range: -20 to 60℃; Storage Temperature Range : -30 to 70℃; www. DataSheet. net/ 2.

📥 Download Datasheet

Datasheet preview – S1602E

Datasheet Details

Part number S1602E
Manufacturer Sinco
File Size 2.28 MB
Description LCD MODULE USER MANUAL
Datasheet download datasheet S1602E Datasheet
Additional preview pages of the S1602E datasheet.

📁 Similar Datasheet

  • S16008LK9 - 128Mb :x4 x8 x16 SDRAM (SPECtek)
  • S16 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
  • S16-12S5 - DC/DC MODULES (Intronics Power)
  • S16-4148 - Switching Diode Array (Microsemi Corporation)
  • S16-4150 - Switching Diode Array (Microsemi Corporation)
  • S16100NH - (S16xxNH) SCR (ST Microelectronics)
  • S1610NH - (S16xxNH) SCR (ST Microelectronics)
  • S1612 - 1.8V CMOS Low Jitter Crystal Clock Oscillator (Pericom)
  • S1616NH - (S16xxNH) SCR (ST Microelectronics)
  • S161COG - LCD Module (Displaytech)
Other Datasheets by Sinco

    Full PDF Text Transcription

    Click to expand full text

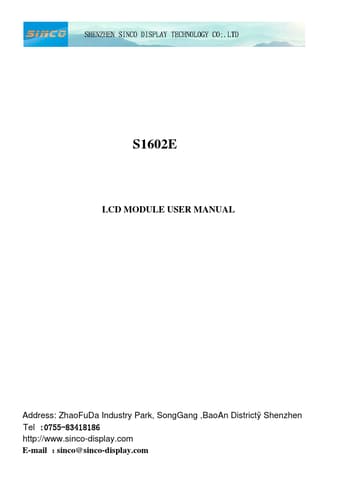

    S1602E LCD MODULE USER MANUAL www.DataSheet.net/ Address: ZhaoFuDa Industry Park, SongGang ,BaoAn Districtÿ Shenzhen Tel :0755-83418186 http://www.sinco-display.com sinco@sinco-display.com E-mail ： Datasheet pdf - http://www.DataSheet4U.co.kr/ 1. FUNCTIONS & FEATURES Features Characters: 16×2 Lines LCD Mode: STN Controller IC: SPLC780D or Equivalent Driving Method: 1/16 Duty; 1/5Bias Viewing Angie: 6 O’clock direction 6800 serial 8-Bit/4-Bit MPU Interface Backlight: LED Operating Temperature Range: -20 to 60℃; Storage Temperature Range : -30 to 70℃; www.DataSheet.net/ 2. MECHANICAL SPECIFICATIONS ITEM Module Size View Area Number of Character Character Size Character Pitch SPECIFICATIONS 84.0L×44.0W×13.0（max）H 64.5×13.8 16×2 Lines 2.95×5.15 3.50×5.
