SH69P21

OTP 1K 4-bit Microcontroller

SH69P21 Features

* SH6610C-based single-chip 4-bit micro-controller

* OTP ROM: 1K X 16 bits

* RAM: 88 X 4 bits - 24 System control register - 64 Data memory

* Operation Voltage: 2.4V - 5.5V - fOSC = 30kHz - 4MHz, VDD = 2.4V - 5.5V - fOSC = 4MHz - 8MHz, VDD = 4.5V - 5.5V

* 11CM

SH69P21 General Description

SH69P21 is a single-chip 4-bit micro-controller. This device integrates a SH6610C CPU core, RAM, ROM, PWM, Timer, I/O ports and 8MHz internal RC. The SH69P21 is suitable for alarm or home appliance application. 1 V2.0 Pin Configuration 14 PIN PORTC.1 PORTC.0 PORTB.2 VDD PORTB.1/OSCI PORB.0/OSCO P.

SH69P21 Datasheet (206.74 KB)

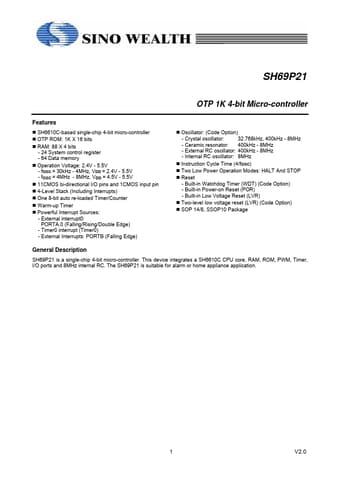

Preview of SH69P21 PDF

Datasheet Details

Part number:

SH69P21

Manufacturer:

Sino Wealth

File Size:

206.74 KB

Description:

Otp 1k 4-bit microcontroller.
