SH69P26

OTP 6K 4-Bit Micro-Controller

SH69P26 Features

* SH6610D-based single-chip 4-bit micro-controller OTPROM: 6k X 16 bits RAM: 389 X 4 bits - 69 System control register - 320 Data memory Operation voltage: - fOSC = 30kHz - 4MHz, VDD = 2.4V - 5.5V - fOSC = 4MHz - 8MHz, VDD = 4.5V - 5.5V 29 CMOS bi-directional I/O pins 8-level stack (including interrup

SH69P26 General Description

The SH69P26 is a single-chip 4-bit micro-controller. This device integrates a SH6610D CPU core, 6K words of OTPROM, 389 nibbles of RAM, two 8-bit timer/counter and one 16-bit timer/counter, comparator, two channel tone generators, on-chip oscillator clock circuitry, on-chip watchdog timer, low volta.

SH69P26 Datasheet (411.44 KB)

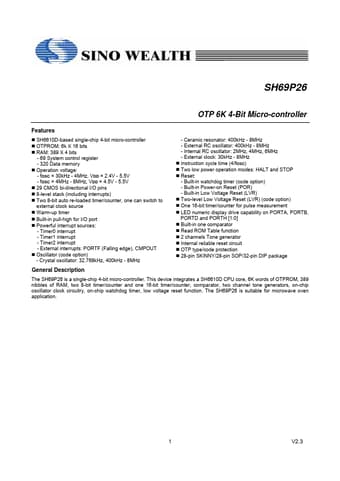

Preview of SH69P26 PDF

Datasheet Details

Part number:

SH69P26

Manufacturer:

Sino Wealth

File Size:

411.44 KB

Description:

Otp 6k 4-bit micro-controller.
