SM2215PSQG Datasheet, Mosfet, Sinopower

SM2215PSQG Features

• Mosfet
• -20V/-9.4A, RDS(ON) = 19mΩ(max.) @ VGS =-4.5V RDS(ON) = 27mΩ(max.) @ VGS =-2.5V R DS(ON) = 45mΩ(max.) @ V GS =-1.8V
• Super High Dense Cell Design

PDF File Details

Part number:

SM2215PSQG

Manufacturer:

Sinopower

File Size:

181.15kb

Download:

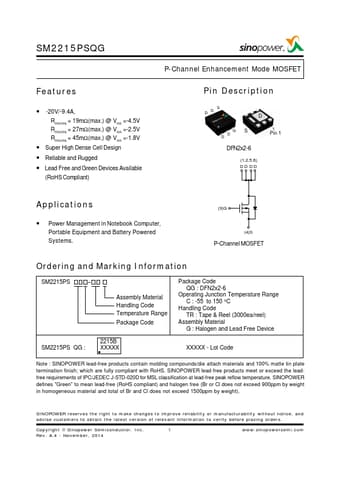

📄 Datasheet

Description:

P-channel mosfet. DS D D G D D S DFN2x2-6 (1,2,5,6) DD DD Pin 1 Applications

Power Management in Notebook Computer, Portable Equipmen

SM2215PSQG Application

• Applications
• Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. (3)G (4)S P-Channel MOSFET Ordering
