SM2217PSQG - P-Channel MOSFET

Product Overview

Sinopower

Datasheet Details

Part number	SM2217PSQG
Manufacturer	Sinopower
File Size	181.80 KB
Description	P-Channel MOSFET
Datasheet	SM2217PSQG Datasheet

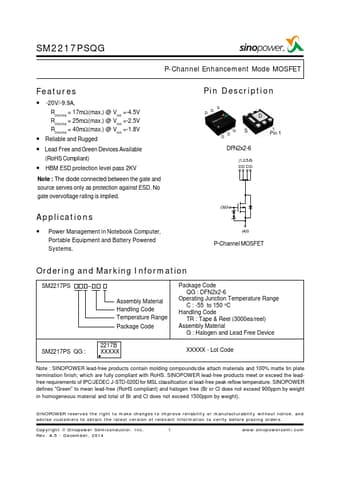

Additional preview pages of the SM2217PSQG datasheet.

Product details

Description

DS D D G D D S DFN2x2-6 (1,2,5,6) DD DD Pin 1 (3)G (4)S P-Channel MOSFET Ordering and Marking Information SM2217PS SM2217PS QG : Assembly Material Handling Code Temperature Range Package Code 2217B XXXXX Package Code QG : DFN2x2-6 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel (3000ea/reel) Assembly Material G : Halogen and Lead Free Device XXXXX - Lot Code Note : SINOPO

Features

-20V/-9.9A, R DS(ON) = 17mΩ(max. ) @ V GS =-4.5V RDS(ON) = 25mΩ(max. ) @ VGS =-2.5V RDS(ON) = 40mΩ(max. ) @ VGS =-1.8V.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
HBM ESD protection level pass 2KV Note : The diode connected between the gate and source serves only as protection against ESD. No gate overvoltage rating is implied.
