SM2403PSAN - P-Channel MOSFET

SM2403PSAN Description

SM2403PSAN .
D S G Top View of SOT-23N D Applications. Load switch. For Portable Equipment. For Networking application.

SM2403PSAN Features

* -20V/-3.3A, RDS(ON)= 90mW (Max. ) @ VGS=-4.5V RDS(ON)= 135mW (Max. ) @ VGS=-2.5V RDS(ON)= 240mW (Max. ) @ VGS=-1.8V
* Reliable and Rugged

SM2403PSAN Applications

* Load switch.
* For Portable Equipment.
* For Networking application. G S P-Channel MOSFET Ordering and Marking Information SM2403PS Assembly Material Handling Code Temperature Range Package Code Package Code AN : SOT-23N Operating Junction Temperature Range C : -55 to 150 oC Handl

📥 Download Datasheet

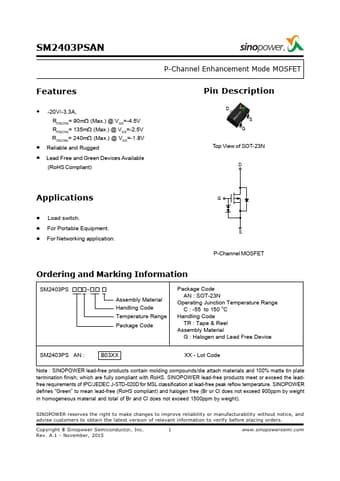

Preview of SM2403PSAN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM2403PSAN
Manufacturer
Sinopower
File Size
227.92 KB
Datasheet
SM2403PSAN-Sinopower.pdf
Description
P-Channel MOSFET
