SM240A, SM220A, Schottky Barrier Rectifiers

SM220A thru SM2100A .

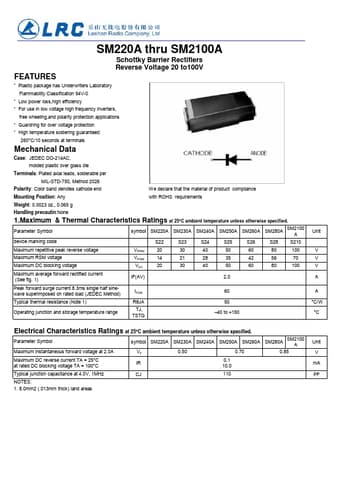

datasheet Preview Page 1 from Datasheet4u.com

SM220A-LeshanRadioCompany.pdf

SM240A Datasheet Preview — This datasheet PDF includes multiple part numbers: SM240A, SM220A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM240A, SM220A

Manufacturer:

Leshan Radio Company

File Size:

229.25 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SM240A, SM220A.
Please refer to the document for exact specifications by model.

Features

* Schottky Barrier Rectifiers Reverse Voltage 20 to100V
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low power loss,high efficiency

Applications

* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case: JEDEC DO-214AC, molded plastic over glass die Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode
