SM2406NSAN Datasheet, Mosfet, Sinopower

SM2406NSAN Features

  • Mosfet
  • 30V/4A RDS(ON)=44mΩ(max.)@VGS=10V RDS(ON)=52mΩ(max.)@VGS=4.5V RDS(ON)=75mΩ(max.)@VGS=2.5V
  • ESD Protection
  • Reliable and Rugged
  • Lead Free and Green

PDF File Details

Part number:

SM2406NSAN

Manufacturer:

Sinopower

File Size:

514.45kb

Download:

📄 Datasheet

Description:

N-channel mosfet. D S G SOT-23N D Applications

  • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems

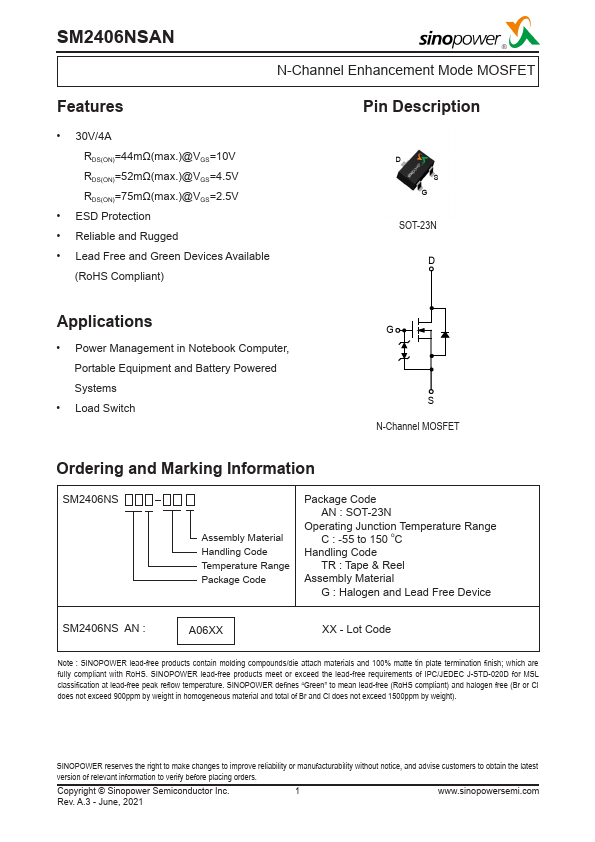

  • Datasheet Preview: SM2406NSAN 📥 Download PDF (514.45kb)

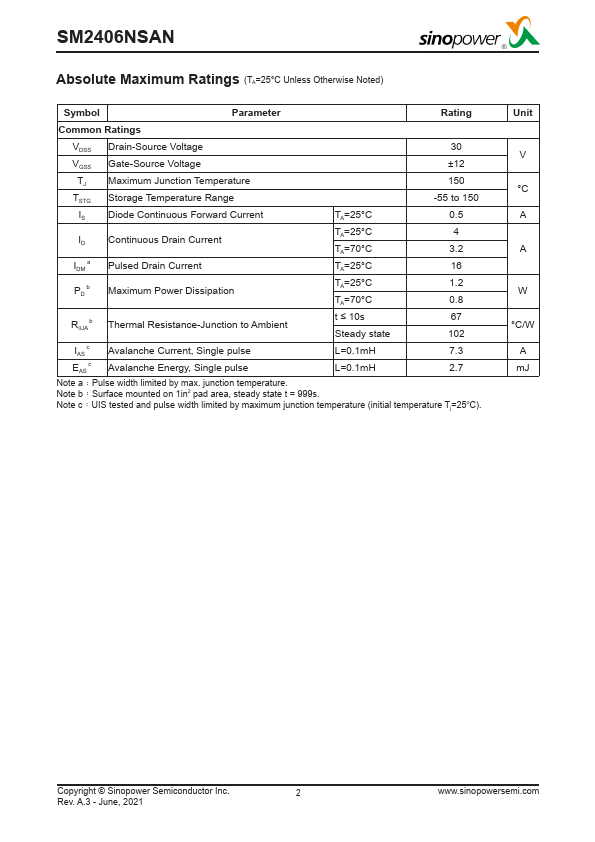

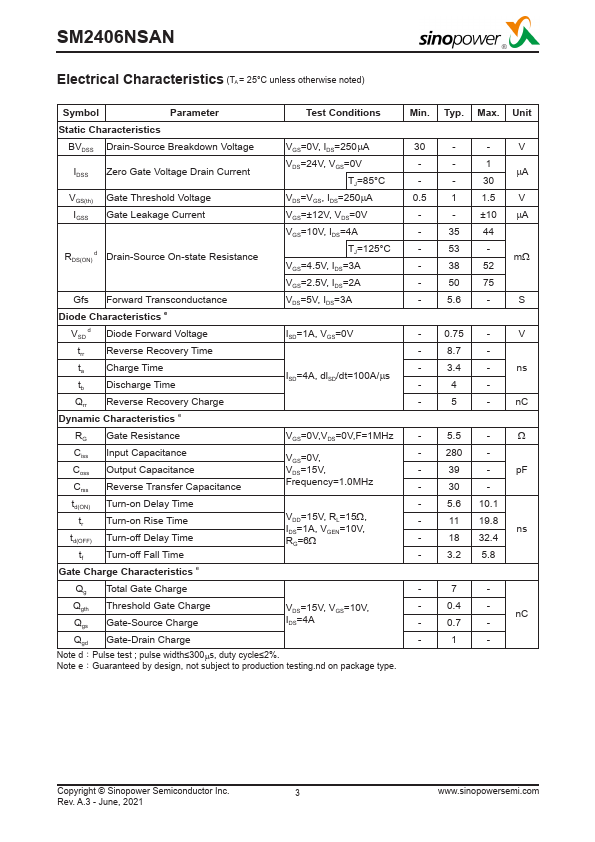

    Page 2 of SM2406NSAN Page 3 of SM2406NSAN

    SM2406NSAN Application

    • Applications
    • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems
    • Load Switch G S N-Channel MO
