SM4520NHKP - N-Channel Enhancement Mode MOSFET

Sinopower

📥 Download Datasheet

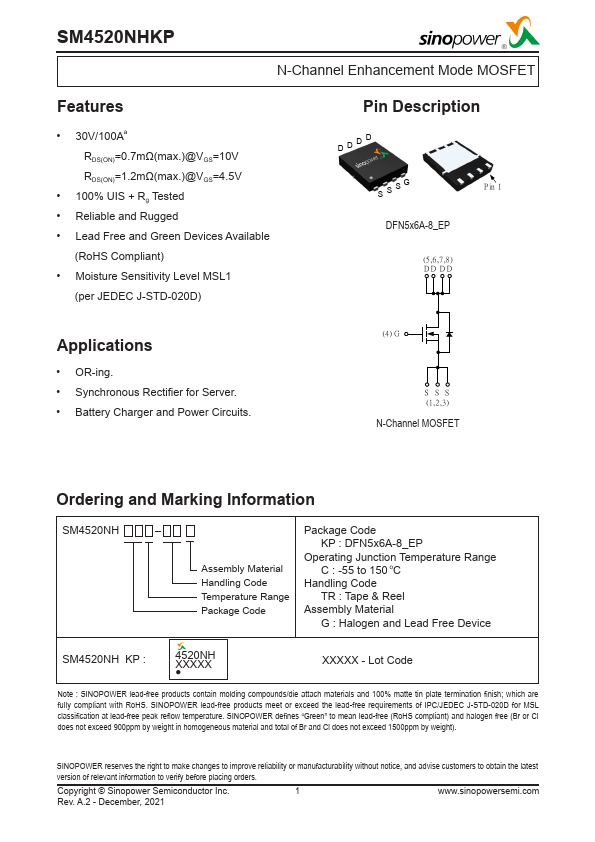

SM4520NHKP Datasheet Preview — Preview of SM4520NHKP PDF

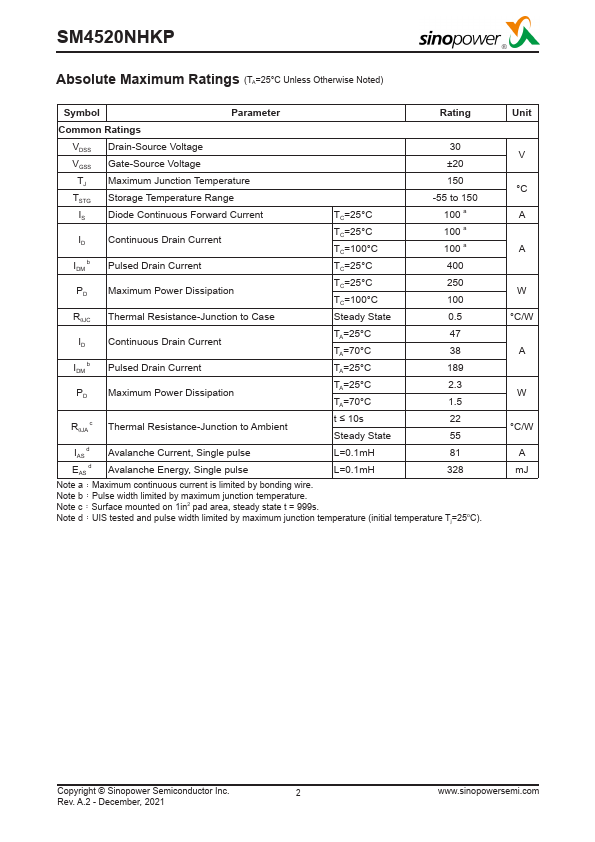

datasheet Preview Page 2

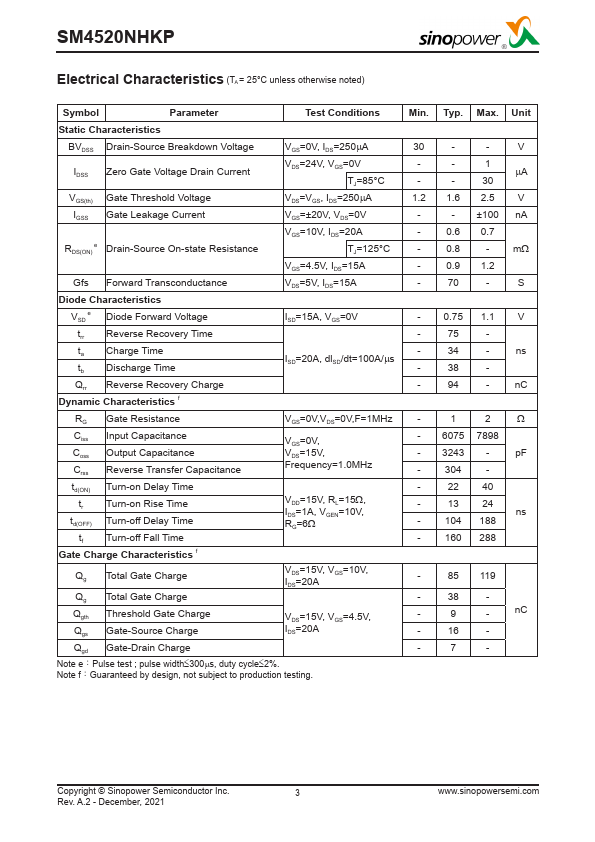

datasheet Preview Page 3

Datasheet Details

Part number: SM4520NHKP
Manufacturer: Sinopower
File Size: 751.49 KB
Datasheet: SM4520NHKP-Sinopower.pdf
Description: N-Channel Enhancement Mode MOSFET

SM4520NHKP Product details

Description

DDDD S SSG P in 1 DFN5x6A-8_EP (5 ,6 ,7 ,8 ) DD DD Applications OR-ing. Synchronous Rectifier for Server. Battery Charger and Power Circuits.

Features

30V/100Aa RDS(ON)=0.7mΩ(max. )@VGS=10V RDS(ON)=1.2mΩ(max. )@VGS=4.5V.
100% UIS + Rg Tested.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
Moisture Sensitivity Level MSL1 (per JEDEC J-STD-020D) Pin.
