SM4528NQKP - N-Channel Enhancement Mode MOSFET

Description

D 8 D 7 D 6 D 5 4 1 2 S 3 S G S P in 1 DFN5x6A-8_EP (5,6,7,8) DD DD Applications

Power Management in Desktop Computer or DC/DC Converters.

Features

  • 30V/84Aa RDS(ON)=4.6mΩ(max. )@VGS=10V RDS(ON)=7.2mΩ(max. )@VGS=4.5V.
  • 100% UIS + Rg Tested.
  • ESD Protection.
  • Reliable and Rugged.
  • Lead Free and Green Devices Available (RoHS Compliant) Pin.

📥 Download Datasheet

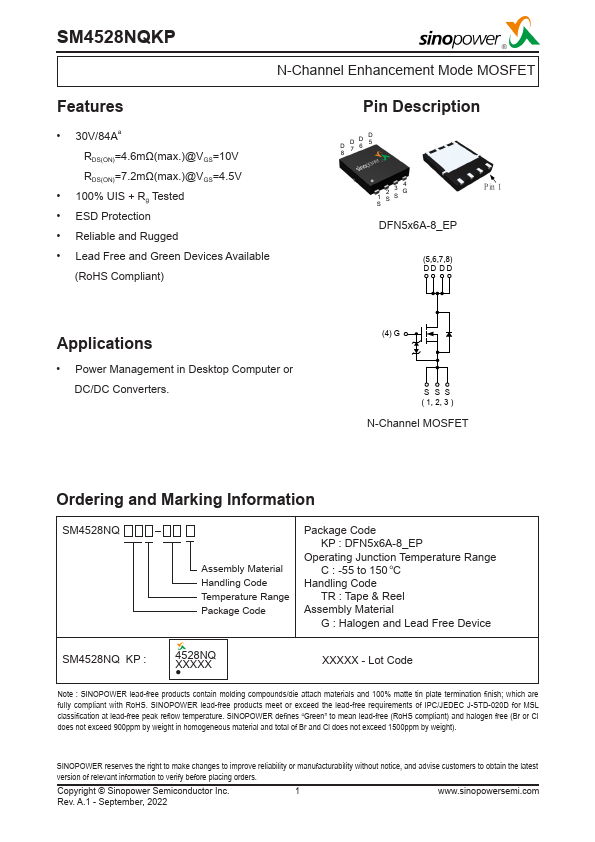

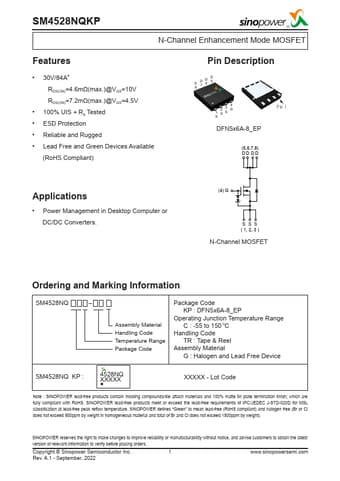

Datasheet preview – SM4528NQKP

Datasheet Details

Part number SM4528NQKP
Manufacturer Sinopower
File Size 723.08 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet SM4528NQKP Datasheet

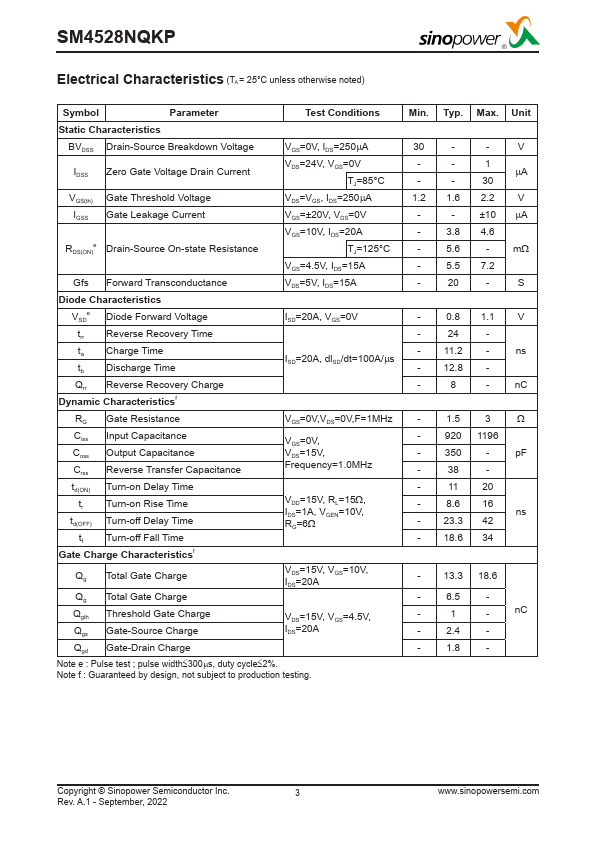

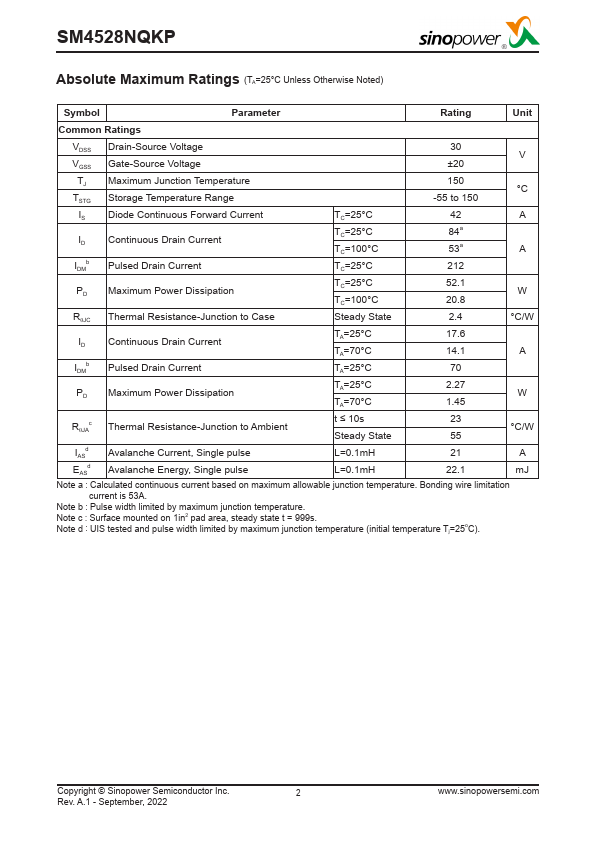

Additional preview pages of the SM4528NQKP datasheet.

📁 Similar Datasheet

  • SM4527 - Surface Mount Wirewound Resistor (Stackpole)
  • SM451R - Magnetoresistive Sensor (Honeywell)
  • SM453229-231N7Y - 10/100/1000 Base-T PoE+ Chip LAN Transformer (BOURNS)
  • SM453229-381N7Y - 10/100/1000 Base-T Chip LAN Transformer (BOURNS)
  • SM453R - Magnetoresistive Sensor (Honeywell)
  • SM4558 - Dual Low Noise Operation Amplifier (OEI)
  • SM4558 - SM4558 (SHENZHEN STATE MICROELECTRONICS)
  • SM45KPA110AN - 500 WATT TVS ARRAY (Protek Devices)
  • SM45KPA160AN - 500 WATT TVS ARRAY (Protek Devices)
  • SM45KPA200AN - 500 WATT TVS ARRAY (Protek Devices)
Other Datasheets by Sinopower

Full PDF Text Transcription

Click to expand full text
SM4528NQKP N-Channel Enhancement Mode MOSFET Features • 30V/84Aa RDS(ON)=4.6mΩ(max.)@VGS=10V RDS(ON)=7.2mΩ(max.)@VGS=4.5V • 100% UIS + Rg Tested • ESD Protection • Reliable and Rugged • Lead Free and Green Devices Available (RoHS Compliant) Pin Description D 8 D 7 D 6 D 5 4 1 2 S 3 S G S P in 1 DFN5x6A-8_EP (5,6,7,8) DD DD Applications • Power Management in Desktop Computer or DC/DC Converters.
