SM6A23NSFP Datasheet, Mosfet, Sinopower

SM6A23NSFP Features

  • Mosfet
  • 600V/6A, RDS(ON)= 0.86W(max.) @ VGS= 10V V @Tj, max= 700V (typ.) DS
  • 100% UIS + Rg Tested
  • Reliable and Rugged
  • Avalanche Rated
  • Lead Free

PDF File Details

Part number:

SM6A23NSFP

Manufacturer:

Sinopower

File Size:

300.73kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Applications

  • AC/DC Power Conversion in Switched Mode Power Supplies (SMPS).
  • Uninterruptible Power Supply (UPS),

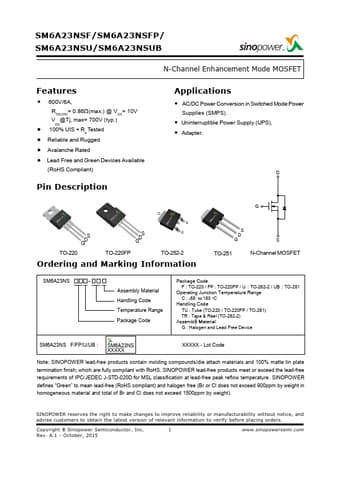

  • Datasheet Preview: SM6A23NSFP 📥 Download PDF (300.73kb)
    Page 2 of SM6A23NSFP Page 3 of SM6A23NSFP

    SM6A23NSFP Application

    • Applications
    • AC/DC Power Conversion in Switched Mode Power Supplies (SMPS).
    • Uninterruptible Power Supply (UPS),
    • Adapte
