SM6A22NSF N-Channel MOSFET

SM6A22NSF Description

SM6A22NSF/SM6A22NSFP/ SM6A22NSU/SM6A22NSUB ® N-Channel Enhancement Mode MOSFET .
Applications. AC/DC Power Conversion in Switched Mode Power Supplies (SMPS). Uninterruptible Power Supply (UPS),. Adapter.

SM6A22NSF Features

* 600V/4A, R= DS(ON) 1.5Ω(max. ) @ V= GS 10V V @Tj, max= 700V (typ. ) DS
* 100% UIS + Rg Tested
* Reliable and Rugged
* Avalanche Rated

SM6A22NSF Applications

* AC/DC Power Conversion in Switched Mode Power Supplies (SMPS).
* Uninterruptible Power Supply (UPS),
* Adapter. D D S S D G TO-220 S D G TO-220FP G TO-252-2 Ordering and Marking Information G S D G S TO-251 N-Channel MOSFET SM6A22NS Assembly Material Handling C

📥 Download Datasheet

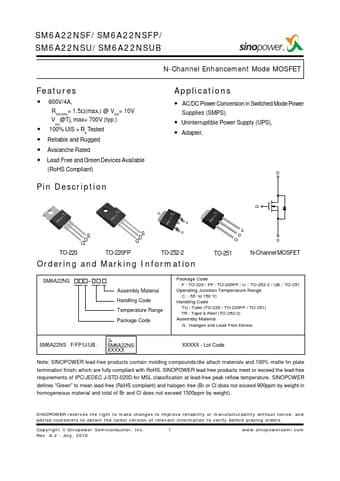

Preview of SM6A22NSF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM6A22NSF
Manufacturer
Sinopower
File Size
194.98 KB
Datasheet
SM6A22NSF-Sinopower.pdf
Description
N-Channel MOSFET
