SM6A22NSUB

N-Channel MOSFET

SM6A22NSUB Features

* 600V/4A, R= DS(ON) 1.5Ω(max.) @ V= GS 10V V @Tj, max= 700V (typ.) DS

* 100% UIS + Rg Tested

* Reliable and Rugged

* Avalanche Rated

* Lead Free and Green Devices Available (RoHS Compliant) Pin Description Applications

* AC/DC Power Conve

SM6A22NSUB General Description

Applications

* AC/DC Power Conversion in Switched Mode Power Supplies (SMPS).

* Uninterruptible Power Supply (UPS),

* Adapter. D D S S D G TO-220 S D G TO-220FP G TO-252-2 Ordering and Marking Information G S D G S TO-251 N-Channel MOSFET SM6A22NS Assembly Mater.

SM6A22NSUB Datasheet (194.98 KB)

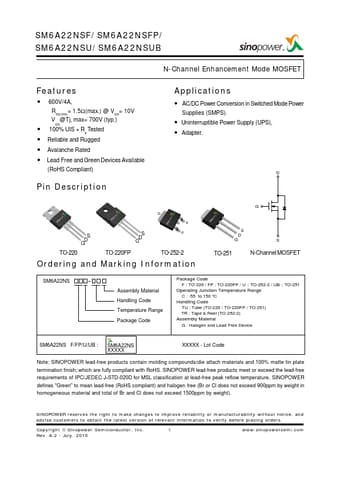

Preview of SM6A22NSUB PDF

Datasheet Details

Part number:

SM6A22NSUB

Manufacturer:

Sinopower

File Size:

194.98 KB

Description:

N-channel mosfet.
